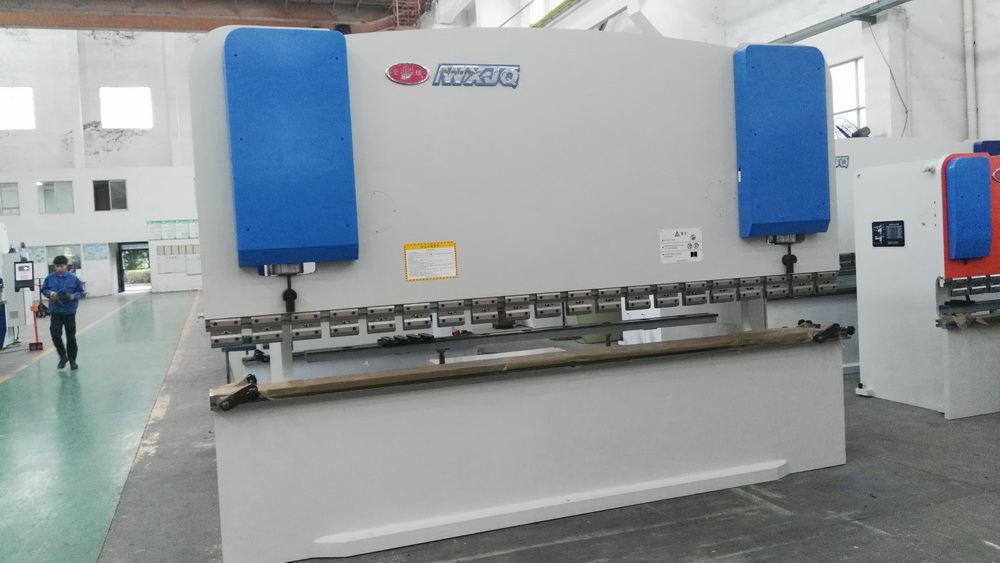

    Amada color DA52 High Accuracy 305 Stainless Steel Sheet Metal Press Brake Machine

    Ask Lasest Price
    Brand Name : WXJQ
    Model Number : WC67K-160/3100
    Certification : ISO9001
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Amada color DA52 High Accuracy 305 Stainless Steel Sheet Metal Press Brake Machine

    Amada color DA52 High Accuracy 305 Stainless Steel Sheet Metal Press Brake Machine

    sell the sheet metal press brake/ plate press brake/ sheet bending machine


    CNC servo sheet press brake Features

    1.Electrohydraulic servo system with closed loop control mode highly guarantees the synchronous
    movement of ram.
    2.Hydraulic crowning compensation on worktable and frame deformation compensation on throat
    ensure high bending precision.
    3.Integrated hydraulic system decreases pipe connections and oil leaks, neat and more realible.
    4.Able to offer multi-axes solutions.
    5.Controller: Delem DA52, Delem DA56, Delem DA65W, Delem DA66W, Delem DA69W, Delem DA66T.
    6.Available in bending length from 2500mm to 8000mm.
    7.Available in bending force from 40 ton to 1000ton.
    8.Multi-axes Solutions

    Ram stroke: Y Back gauge: X, Hydraulic crowning compensation axis: C

    9.Standard Equipment

    • Delem DA52
    • Side and Rear Guards
    • Front Support Arms
    • Quick Release Tool Clamps
    • Ball Screws and Linear Guides
    • Foot Pedal With Emergency Stop Button
    • One Set of Standard Sectioned Top Dies and Muliti Vee Bottom Dies

    DA41 system sheet press brake machineTechnical Parameter:

    SpecificationWC67K160/3100
    Norminal pressure1600KN
    Length of table3100mm
    Distance between housing2050mm
    Throat depth250mm
    Idle down of ram65mm/s
    Working speed of ram8mm/s
    Return speed of ram70mm/s
    Stroke100mm
    Open Height500m
    Main Motor Power11KW
    Overall dimension32000×17220505×2915mm
    Weight11000kg

    high precision sheet metal press brake machine Specification
    1.Steel welded structure, stress elimination by vibration, high mechanical strength, and

    exceptional rigidity.
    2.Hydraulic top-drive, steady and reliable.
    3.Mechanical stop and steel torsion bar to maintain synchronization and high precision.
    4.Electric adjustment, manual fine adjustment, and digital display for backgauge distance

    and stroke of up ram.
    5.Deflection compensation unit installed on the up die or on the down die if the operating

    pressure is 63t or above.
    6.Safe fence and the electric interlocker have been designed for the machine to ensure

    the operation safety.
    7.The drive element of backgauge adopts imported ball screw and linear guideway.
    8.The equipment automatic hydraulic crowning system can compensate the bending tolerance

    caused by the ram torsion.
    9.Electric box: power off when open the door.
    Features:
    1.Machine that works in parallel with synchronized control system
    2.Optimizing parallel work and keep a uniform and precise folding
    3.Parallel mechanical system, provided by torsion bar
    4.General structure designed by extensive knowledge, and convenience to be loaded
    5.Carrera 2 cylinders controlled by very strong and very hard

    Product Description:
    Synchronization
    The electric-hydraulic servo system can control the synchronization of cylinders for our

    WE67K Hydraulic CNC bending machine, hydraulic Press Brake, CNC Bender. Combined

    with optical curtain of international standard, the fully closed loop control is formed with

    high bending and repetitive positioning accuracy.
    Compensation
    The CNC cylinder deflection auto compensation system helps to prevent the deformed

    sliding block from affecting the workpiece quality and ensure its good linearity and bending

    angle WE67K Hydraulic CNC bending machine, hydraulic Press Brake, CNC Bender.

    The compensation ID adjusted automatically by the CNC system, both convenient and accurate.
    Feeding System
    There can be 6 axels when equipped the inward CNC system.
    Hydraulic System
    The hydraulic adopts the integrated, which helps to reduce piping connection, eliminate oil leakage,

    improve the work stability, and beautify the machine appearance, the inner engaged gear pump manufactured

    by a famous Germany company is used to reduce the system noise and

    extend the service life.
    Tooling
    The die sections have different lengths, which can be combined with a certain width to meet the processing

    requirements of special work pieces.


    Configuration
    1. adopt control system DA-41
    2. Ram Synchronization via torsin bar and dead stopper block
    3. Angle control by adjsut the stroke of the hydraulic cylinder
    4. Y, X axis as standard, auto indexing of axis at start-up
    5. uropean (System) Top and Bottom Tool Clamping
    6. Hardened Gooseneck Top punchingl and multi V Bottom die
    7. Servo motor driven back gauge on ball screws (=X-axis)
    8. Crowning Table / Top clamping with anti deflection wedges
    8. Side and rear safety guards and safety interlock switches

    9. light curtain pretection

    Optional Equipment

    CNC Controller: Delem DA56, Delem DA65W, Delem DA66W, Delem DA69W, Delem DA66T.

    Oil Cooling System

    Safety Light Curtain

    Back gauge system with more axes


    Packing And Shipping for sheet metal press machine:

    1. the machien adopt iron pallet with plastic cover to pack after the machine is
    running and testing for 48 hours.
    2. Before loading, stable package, professional and skilled loader reduce
    damage of product during transport
    Shipping Documents:

    • Operation Manual(hydraulic diagram,electro diagram)
    • Foundation plans
    • foundation bolts
    • footswitch
    • Oring parts
    • Quality Certification
    • Packing list
    • Colors: According to Customer's requirements

    Option:

    • sectional tooling with different length may store forming a certian length to bend
    • Automatic crowned deflection compensation
    • automatic front feedning device and rear pushing device
    • two-hand control device
    • light curtain protection or laser protection
    • any tailor made are available on ewqueste.

    Dwonload brochure here:
    press brake & shear.pdf
