Manufacture Price Delem System Steel CNC Hydraulic Press Brake 120T Amada Toolings

new type CNC hydraulic press brake machine, hydraulic bending machine,400Ton hydraulic press brake.

Servo Press Brake Machine performace

The CNC servo press brake machine is designed according to JB/T2257.2-92(China National

standard) “platebending machine technical conditions" and GB/T14349-93 "plate bending machine precision",all the parts of this machine are using computer graphics, computer element analysis,

computer aided manufacturing, PLSON use CAD, CAE, CAM software for machine structure design,

and fully guaranteed the structural strength enough and rigid of each machine component.
The whole steel frame welded structure, made the CNC press brake thick, high rigidity, strong shock

anti-knock.

Technical Data of CNC hydraulic press brake :

Mechnical bending machine Main Features

1.The motor and electronic system elements of the hydraulic plate press brake machine are all

composed from Siemens or Schneider
2.Dies can be designed under clients’ requirement. The machine will be equipped standard molds

the drawing will be sent. And the non-standard molds can be designed if the clients can provide the

dies drawing or the workingpieces, we will design. The upper mold can be done in section.
3.We use Germany Schneider Stroke Button with high good durable stability, the stroke will be worked stable or be suspending without any sudden down movement which is serious dangerous.
4.Oil pump can be used from China chengjie enterprise who is used in China’s Aircraft industry.

Or we can use Germany ECKERLER enterprises.
5.The seal will be from USA Parker or Japan Valqua Company.
6.The hydraulic press brake system and valve will be from USA OMG or Germany BOSCH Company.
7.The security protection equipment: The design always care about the worker security when

operation both working and checking stationary. We equipped both side magnetic door to avoid any penetration inside. At the back, we will provide 3 Section close door with the middle door moveable

and the power will be off when the door open, power on when the door close. The light curtain is

useful components to aware any finger in dangerous position.

Produtivity:
- Automatic calculation of angle, force and back gauge axis.
- User-friendly control
- High performances

Versatility:
- control system (DELEM system)
- Configuration to the customer

Precision:
- Structural compensation system
- Servo-motorized axis
- Proporcional hydraulics

Safety:
- Machines with directive CE 2006/95 CE
- Lazer safety device

Reliability:
our machine has a strict policy for the choice of its components, on the basis of an extensive

experience acquired over decades. All components are certified in accordance with European

standards and their main sources are Germany, USA, Holland, Italy and Switzerland. All structural

parts are calculated by the finite element method and only high quality steel S275 and

S355 JR namely J2 (+ N) is used.

Safty worke on mechnical press brake

our plate press brake machines comply with the strictest EU regulations with referenceto safety.

The devices

installed guarantee thorough safety of the operatorwithout reducing the pace of work.

• The most advanced laser systems
• Safety PLCs able to manage and monitor the action of the proportional valves
• Visible dual beam linked to the upper tool: should it be is interrupted, it blocks the movement of

the press brake
• Easy adjustment by means of a grading scale
• Constant monitoring of parameters related to safe

hydraulic system for CNC hydraulic press brake machine:
Name: Hydraulic system
Brand: Bosch– Rexroth
Original: Germany
our price introducing the hybrid system at the same price as theconventional system, leading to

a series of advantages for the customer:a huge energy saving (55% if compared to a traditional

machine) and amassive reduction of the oil quantity needed, thanks to the double tank.

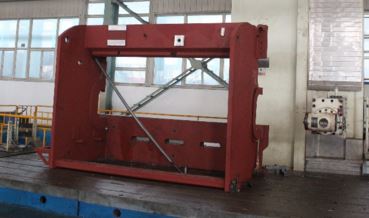

Machine frame
Name: machine frame
Brand: JINQIU
Original: CHINA
our machines are designed from the ground up by our expert engineers with only one goal: to build

the best machines imaginable. By combining our unique machine designs with the highest quality

materials available, we have achieved our objective and invented some of the most reliable and

durable machines in the world!

Press brake tooling Optional:

1.sectional tooling with different length may store forming a certian length to bend the closed frame wokpiece.

2.Automatic crowned deflection compensation

3.front pneumatic sheet support

4.two-hand control device

5.light curtain protection or laser protection

6.any tailor made are available on ewqueste.

download brochure here

CNC hydraulic press brake machine.pdf

4000m press brake Machine picture:

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
