Panel And Box Angle Forming CNC Corner Former Machine Bending 90
Degree Angle
corner froming machine/ sharpening angle forming
Performance of corner forming machine:
The CNC corner molding machine improves more than three times. So
enterprises do not have
to worry about recruitment. The whole machine power is 3.5KW when
the hydraulic system works,
but the welder power is 16.2KW, saving nearly 4.6 times. Save wire,
carbon dioxide (or argon),
grinding, protective equipment using costs. 300 days in accordance
with the year and daily work
six hours, a workers can produce 108, 000 workpieces by using the
machine model, but two
traditional craft Branch can produce 36, 000 workpieces. You can
get more than 3 times profit
directly if you use the machine model, saving engineering 40, 000
RMB, saving electricity
34, 000 RMB and saving materials costs 36, 000 RMB (according to
more than one consumption per).
Less than a year the savings are enough to pay for another corner
molding machine.
Features of meta lcorner forming machine:
Usually for processing door corner, should cut off four corners of
the sheet first, bend four
edges, welding the corners and grinding them then, the work wastes
time, hard to dio and
pollute environment. our cover forming machine molds and different
thickness and different
size door corner can be made.
cutt off corner of sheet metal is o longer needed. just pre-bending
the sheet and put it into

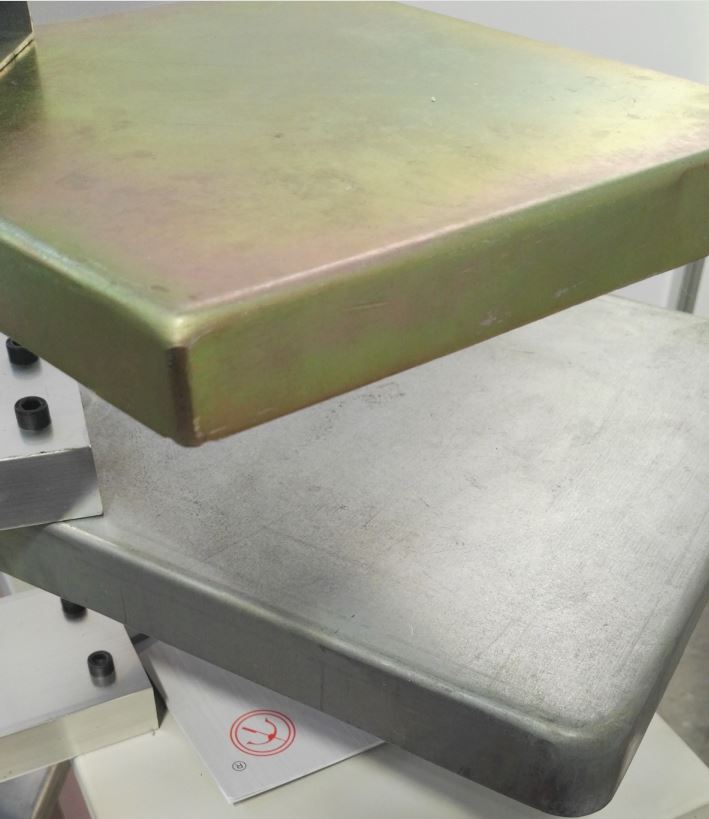

corner froming machine then the corner can be made. thew corner and
sheet are in solid
body and welding and polishing process is no longer needed. any
size of door corner can
be made. the corner is smooth, good look and good rigidity.
Specification:
| Parameter items | Technical parameters |
| model | JCX-BH-135 |
| Processing Range | thickness of latten (mm) | Aluminium plate | 1.2~3.0 |
| Cold-rolled plate | 0.8~3.0 |
| Stainless steel plate | 0.8~2.0 |
| dimensions of workpiece (mm) | Min. 140×140, Max. no limited |
| Flange height (mm) | Less than 10 to 15 times the plate thickness(Determined by the
material and plate thickness);
Max. 30 |
| Corner radius(outside), mm | R4, R5, R6; Standard mould |
| moulding angle | Standard mould, 90° |
| special mould, 80°, 100°(optional) |
| time lasting for changing mould | rolling mould | < 2 sec. |
| square mould | < 3 sec. |
| shear knife | < 3 sec. |
| clearance between rolling mould and square mould | < 20 sec. |
| process time | for one plate | < 60 sec.(Moulding and cutting four corners) |
| moulding one angle | 10sec.(including auxiliary time) |
| Total power | 4KW |
| Power supply | 3~380VAC+PE 50Hz |
| Dimensions (mm) | 1560×1330×1600 |
Character of stainless steel sheet corner formign machine:
the corner is made by rolling and shearing in the machine, no
welding process is needed.
standard round corner radius are 4,6,8mm. special corners is also
available by special mold
the froming process is easy to do. keep good coating of sheet and
get good look corner.
for common material, forming height can be 10-15 times of sheet
thickness. for easy tensile
matesial, forming height can be 15-20 times of sheet thickness.
many kinds of metal sheet corner can be processed. suitable for
making door of electrical box,
switch boards cover,roaster door,case cover,dish tray etc.
Warranty and service:
one year warranty for whole press machine.
all spare parts are available as we produce most of the parts in
our factory.
it is easy to get the electric parts as all are international
famous brands.
we can provide technical support via email, phone or video.
we can send out engineers for service, installation or training
with reasonable additional cost.
English operation and maintenance manual is provided with the
press.
All safety warning tags and control panels are in English.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China,
near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production
process and final process. Only qualified products can be sent
out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in
guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid, the balance 70% T/T prepaid
before shipment)
