500Ton Hydraulic Straightening Machine 4 Colunm Type Press Machine Bend Steel Pipe
supply Hydraulic press machine,hydraulic press, straightening machine,bending machine

moving type straightening Characteristic:
this straightening press machine is four column structure, mainly is suitable for straighten
the round pole, circular pipe, polygonal pole and solid pole.
the press machine body can left and right moving to straighten different posiiton. and there
are two lifting and rotation device on the worktable. it can easy rotate the work piece to different
surtace to bend and check the camber. the bending support device also can move in left and
right to suit the different length pole.
the press machine equip two sets of hydraulic stantion, one supply the 4 colunm press machine,
another one supply the lifting&rotation device. it can get lower noise and stable pressure.
the hydraulic press adopts steel welding and eliminating stress, the hydraulic system all

closed in the fuselage, very convenient in practical use. and miantennce.according to the

diffrent products are V ytpe lit table, replace the pressure head is convenient manual botton

control, automatic return,
high efficiency, good quality installation,overheating set of process.

Functions: Hydraulic machine from the YQ series based on the increase of operating speed
(high speed hydraulic machines), in order to adapt to the needs of the extrusion process, the
tonnage of the scope of 100-600 tons.
Technical parameter:YD61-500T
main cylinder pressure return(KN):5000
main cylinder pressure return(KN):930
under the push-out pressure(KN):1000
effective size of table(left right*front back)(mm*mm):1000*1000
master cylinder stroke(mm):600
under the top cylinder stroke(mm):300
slider away from the table the largest opening(mm):900
speed(mm/s)fast down:200
speed(mm/s)slow down:10-20
speed(mm/s)return:140
motor power(KW):44
Moving Worktable Press Machine Introduction:
The Hydraulic press has three-beam and four-pole structure, which means
economical and practical. Operation space is wide, and the movable bolster
could be moved out of frame to set the die. The structure is simple and the
appliance is also beautiful. Hydraulic control adopts plug-in valve system,
which means reliable motion and long service life. The press,, which could
realize three-operation mode: adjustment, manual and semi-automatic.
The machine is applicable for metal sheet stretching and pulling, stretching,
punching, bending. It is also used for pulling, stretching and pressing
large-scale products. Presses offer fast, easy, and safe setup and operation
as well as years of trouble-free service.

4 Column hydraulic straightening Machine paramter:

Warranty:

1. Our guarantee time is 13 months from shipment date. If any component is damaged during
guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training
freely. The customer provide the double trip tickets, food and accommodation for our engineer.
The customer can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,
can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line
service.

More information please contact us:
wxmachinery@163.com

WhatsApp:+86 13961729519

Skype: zouqicheng

QQ: 2308574039

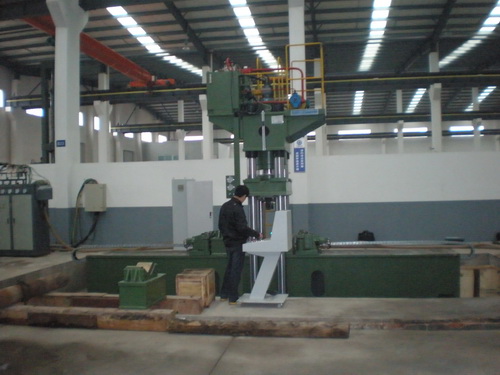

6m length straightening press Machine picture:
