V Shape Groove Making Machine 4mm Sheet metal V groover Alloy Blade Cut Stainless

we are exporting V grooving machine, V groover,V cutting machine,sheet metal V grooving machine,

CNC notching machine

CNC V grooving Machine tool performance:

1. V groover makes the grooves on the stainless steel,The arc radius of the workpiece after

bending is small and without refraction.

By bending process, the edge of the workpiece after bending arc radius and was bending

workpiece, the thickness of the proportional relationship because after a v-shaped slot on

sheet metal, the thickness of the remaining sheet is only half of the original sheet thickness,

even smaller, so that when the bending edge arc radius of workpiece is exponentially decreasing

in proportion. And because the thickness of the remaining sheet after a v-shaped slot is small,

bending deformation force is small, do not spread influence not to bend area, so after bending of

metal plate surface without refraction, ensures the flatness of the plate and water chestnut position

of straightness. This satisfies the special requirements of high-end decoration in hotels, restaurants, restaurants, shopping malls, Banks and airports.

2. Reduce the pressure required for bending of the plate.

According to bending process, the sheet metal bending force and the bending of sheet metal

work piece thickness is directly proportional relationship, before bending after a v-shaped slot on

sheet metal, make the rest of the sheet thickness is about half of the original sheet thickness, or

less, so that the bending force of sheet metal bending need also decreases, and accordingly makes

long sheet metal bending machine in small tonnage also be able to bend. It can reduce equipment investment and save energy.

3. The workpiece with special shape can be bent into shape with universal mold.

High-end store shelves, such as stainless steel decorative profiles are not able to meet the

requirements of design staff, such as rectangular tube, the material form in ordinary bending machine cannot be bent into shape, or the special design of complex mold to do the work. However, by

controlling the depth of the metal plate V groove, this special bending material can be bent into

the normal bending machine. Particular way is: the last line of the bending process of V groove

residual sheet thickness control in 0.3 mm or so, so that the bending process of springback Angle is

very small, will no longer will rebound variant type torque tube forming.

4. Position the bending edge length before bending.

Through simple v-shaped slot on sheet metal, can be used in the folded bend bend before the predetermined bit length size, and then in the bending machine according to the bending score

good v-groove line in advance, so that we can ensure the bending length size accurate, can use

ordinary bending machine instead of CNC bending machine, reduce the cost of bending equipment investment. The positioning accuracy of our v-type slotting machine can reach 0.1 mm.

5. Sheet metal CNC V groove planer is a new product with high efficiency and low energy

consumption.Without special equipment before a v-shaped slot, usually used double housing

planer to V slot of sheet metal because of double housing planer is on effective metal plate pressure loading device, the depth

of the v-shaped slot degree of metal plate and V groove distance cannot be accurately positioning

control, and to start the double housing planer energy consumption is large, low efficiency and

various factors,the v-shaped slot of the metal plate work has been replaced by numerical control

planer V groove.

The new type of sheet metal CNC V groove planer gives full play to the advantage of numerical

control hydraulic, which reduces the average power loss to 2 kilowatts, which is 1/20 of the traditional

equipment.

I plant production of CNC sheet metal V groove planer is an ideal environmental protection and

energy saving products, its superior performance has been completely replace the imported

equipment, and vigorously promoted in domestic and international scope, get the customer the

consistent high praise.

CNC sheet V groover Warranty:
1. Our guarantee time is 13 months from shipment date. If any component is damaged during
guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training
freely. The customer provide the double trip tickets, food and accommodation for our engineer.
The customer can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,
can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line
service.

3mm stianless steel groover cutting machine Parameter:

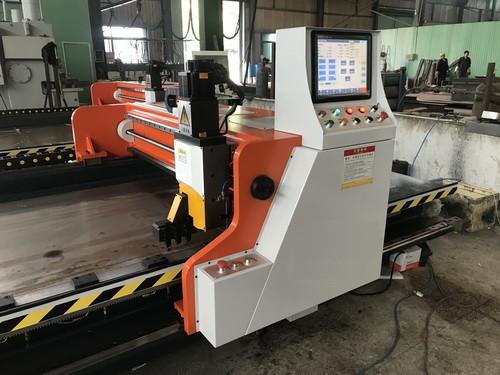

CNC sheet V groove cutting Machine Photo:

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
