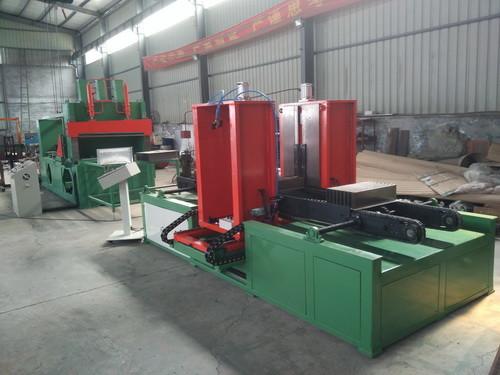

Corrugated Fin Forming Machine 1600mm Corrugated Band Former Transformer Tank Make

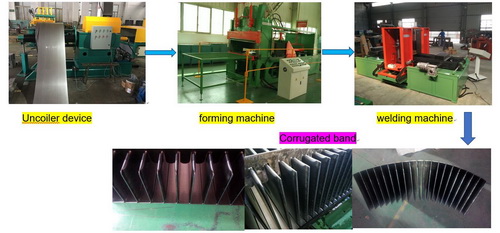

Equipment composition of the corrugated fin forming machine

transformer oil tank production line such as unclier,feeding trolley,numerical control corrugated band

forming machine,hydraulic clipping machine, power driven conveyer, numerical welding machine Etc.

are contained.

parameter of corrugated band forming machine

technical data of corrugated oil tank welding machine

General Description

1) Special machine for transformer fuel tank.
2) Include loading trolley, main machine, hydraulic station and electric control box etc.
3) Has reasonable structure and operation easily.
4) The hydraulic system is automatic controlled and running stable.
5) May complete such as forming, shearing, bending etc process within one time when you put all operation

parameters at screen.
6) The main technical parameter

Detailed Product Description:
1. Parts of Power Transformer Corrugated Fin Forming Machine
1) Hydraulic Automatic Decoiler Machine
2) Transformer Corrugated Fin Forming Machine
3) Hydraulic Transformer Corrugated Fin Shearing and Bending Machine
4) Transformer Corrugated Fin Automatic Welding Machine
5) Hydraulic Station
6) PLC Control System

2. Features of Power Transformer Corrugated Fin Forming Machine
1) Specially designed for forming and welding transformer corrugated tank fin.
2) PLC control, fully automatic line: automated conveying, clamping and welding.
3) Touch screen control it is easy and convenient to operate.
4) High-speed welding, much faster than manual welding.

3. General description of Power Transformer Corrugated Fin Forming Machine
1) Includes materials guidance, feeding, front pack, rear pack, edge folding,
shearing and parts collection.
2) The hydraulic system is automatic controlled and stable running.
3) Human interface computer dialogue display, reasonable structure and easy in operation, labor saving
(1~2 labors).
4) Perform the process of forming, shearing and edge folding within one time when you input all operation
parameters on computer unit.
5) Since it’s using, this machine has been proven to have lasting performance, reliable quality and high
efficiency by the transformer manufacturers.

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
