125 Ton H Type Power Press Machine / Pneumatic Punching Machine

looking for power press machine,hydraulic press, press machine,bending machine
Introduction:

punch press is a suitable open type crank press featuring a left and right open
type machine body (i.e. C-shaped machine body). Its steel plate welded body has
high shock-absorbing performance. Its novel overall design gives the machine elegant
appearance. Its throat has certain depth. The compact structure makes the use convenient
and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band
brake and a press-down type safety device. Its working table is open on three sides,
so the mold loading and unloading and operation are convenient. The punch press
is widely used for it provides good conditions for mechanization and automation.
And as main equipment for plate punching production, the punch press can be used
for punching holes, blanking, trimming, bending, shallow stretching and forming in
national defense, aerospace, automobile, tractor, motor, electrical appliance, bearing,
instruments, agricultural machine and tool, bicycle, sewing, mechanical appliance,
daily hardware and coinage departments.

Features:
Double pneumatic cylinder counterbalancing the weight of the slide and
upper mold,can reduce the impact and noise, so as to eliminate the clearance
between the connecting rod and slide.
By means of the PLC and pneumatic controls, this machine can carry out
various actions.Through the universal selector switch, it can perform the following:
A. inching; B.single stroke; C.continual punching; D. emergency stop.
The key components such as slide, guideway, bloster and connecting rod use
high intensity castiron with resin sand structure. Comparing with clay sand structure,
their surfaces have 1~2 degree improved roughness and 2~3 degree improved
precision.
The types over 60Tons are equipped brake motor which can adjust the shut
height automatically.

Special Advantage:
The wet clutch technology is from Japanese famous punching factory AIDA,
and had several decades experience, gain lots of customer’s acceptance.
The manufacturing engineering is introduced from Japan.
The main parts of clutch are imported from Japanese famous brand.
The wet clutch is multi-plate friction, better tan Single piece of friction,
have longer lifetime
The frictions plates were dipped oil, that can be improve the abrasion resistance,
and have better affection of heatdissipation.
It’s adopted closed structure, can decrease the noisy, and without dust.


Standard Accessories:
Hydraulic overload protection device
Manual type slider adjustment(Below HT60PP)
Electrodynamic slider adjustment device(HT80PP above)
Variable frequency variable speed motor
High mechanical mode indicator(Below HT60PP)
The digital model of high indicator(HT80PP above)
Slide block and mold balance device
Rotary CAM controller
Crankshaft Angle indicator
Electromagnetic counter
Air source connector
A second fall protection device
Air ejector
Mechanical shockproof foot
Miss inspection device
Maintenance tools and tool box
The main motor reversing device
Photoelectric safety protection devices
Misfeed dectector device
Maintenance tools and tool box
Electrodynamic butter lubrication device

Technical Parameter:

After Sale Service:
We send professionals to provide the onsite service in commissioning test and
operation training.
Technical support is provided via AliTM or e-mail in 24 hours a day.
Onsite maintenance is provided by our engineers to help you solve the quality issues.
We provide replacement free of charge for the faulty machine parts within 1 year


More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype: zouqicheng

QQ: 2308574039

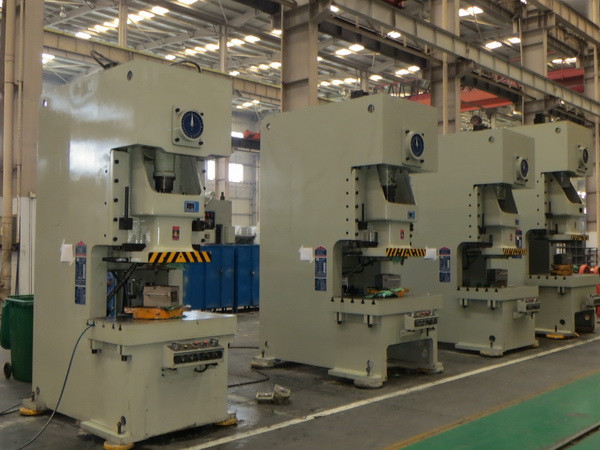

Machine picture:
