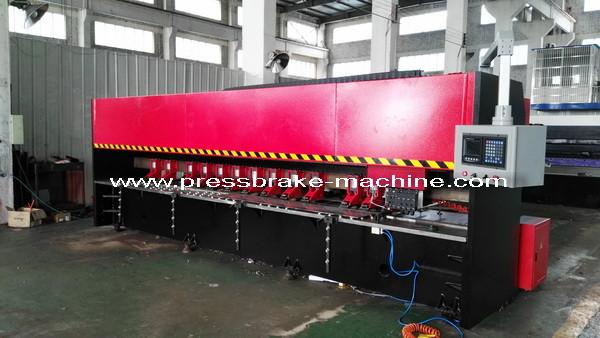

CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency

supply 6mm stainless steel V grooving machine, V groover,V cutting machine,CNC plate v grooving machine

Information for CNC v groover BC05K-1250X4000

4m length CNC V groover Machine to cut the groove on the stainless steel and mild steel.

The equipment adopts the big pitched ball screw and high torqued servo motors as the main drive, which makes knives more stable and faster when processing.

The worktable of high strong plate as the surface makes the workpieces not easy to wear in machining.

A panel with the adjustable fuselage during the workpiece activities makes the point to every bit of mesa precision in 0.02 mm distance that within.

Equipment which adopts PLC man-machine interface programming allows the operating personnel easy to understand and locate accurately.

6mm stainless sheet V groving machine Performace

The machine is designed for cutting Grooves on metal sheets and plates,

such as steel, aluminum, aluminum, copper, plastic, wood and acrylic panels.

It is especially and widely used in Stainless sheet decoration field, to make V grooves before bending.

vertical type machine, alloy steel welded structure, and whole frame stress annealed,

having good rigidity and strength and durability.

Whole table planed in house with good flatness

Open-architecture CNC controller, extensible for new function

3-blade cutting head, working with high efficiency.

High speed sliding Blade Carrier, driven through Ball screw and Linear Guide rail,

with high repeat positioning accuracy.Hydraulic clamping pad unit,Spray Cooling system

Bought-in Parts and Components are world top class, Parker hydraulic piping and

fittings, THK hydraulic and heavy duty Linear Guide Rail, Panasonic AC Servo Motor,

Newcastle Planetary Reducer, Schneider Electric Components, NSK Bearings, IGUST

Power cable and Cable Towline, YUKEN hydraulic Valves, HERG Lubricating system,

R+W Coupling.HUST H4C CNC system from Taiwa

CNC Sheet Metal Surface V Groove Machine from 4000mm to 6000mm

Plate V cutting machine technical parameter

Better Cuttings

1. high quality alloy blade

2. fast cutting speed.

3. flatness worktable

4. high efficiency cooling device

5. distribution uniformity pneumatic clamping

CNC v grooving machine description

the CNC Notching Machine is dedicated to the top-grade building decoration industry.

It 's base and beams are welded structure design, the overall steel is well and less deformation. The base is fixed ,with the help of helical gears &rack driving to make the beam moves that achieves cutting.

Servo unit adjustable of the mobile speed, smooth and efficient cutting process&

smooth cutting surface. With three-Axis numerical control machine has high positioning accuracy, large processing range.

It has individual front feed and end feed. The Pressure is adjustable and the press is reliable with hydraulic and pneumatic compression.

The machine has a self-planning function. If the table is not flat or defective after

long- time be used, you can use self-planed features for reset.

Packing And Shipping

1. the machien adopt iron pallet with plastic cover to pack after the machine is

running and testing for 48 hours.

2. Before loading, stable package, professional and skilled loader reduce

damage of product during transport

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
