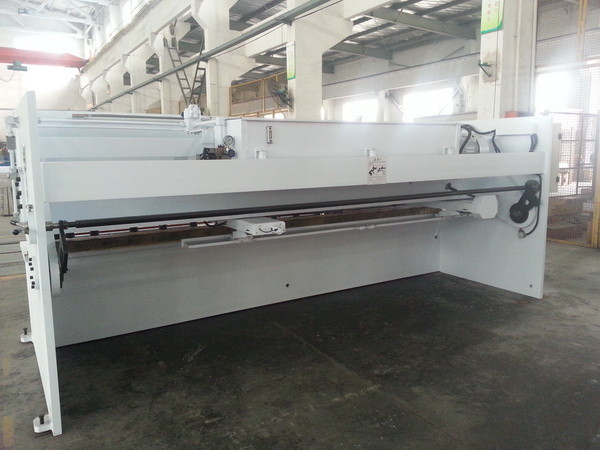

    Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears

    Ask Lasest Price
    Brand Name : WXJQ
    Model Number : QC12K-6X4000
    Certification : ISO9001
    Delivery Time : 30 days
    Payment Terms : T/T or L/C
    • Product Details
    • Company Profile

    Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears

    Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears


    factory price for hydraulic shearing mahine/guillotine shear/CNC press brake machine/cutting machine/tandem press brake


    Introduction:


    A fully welded steel construction with high strength and rigidity.

    Front-controlled backgauge by power fast-adjustment and manual fine-adjustment with

    counter display.

    Fast-adjusting device for blade clearance.

    Reliable protection barrier. With counter.

    Swing beam type cutting action, hydraulic driven to ensure stable and reliable and

    easy to operating.

    blade gap can be adjusted accurately and rapidly, top blade stroke can be adjusted stepless to

    improve cutting speed.

    Matching variety of back gauges and blade gaps which controled by CNC system.


    Details:


    1. welded frame and blade carrier

    Strong steel welded frame and blade carrier are both temperaturetreated tp release the stree.

    it improves the cutting precision of the shear.


    2. back gauge:

    the back gauge is adjsuted by mechnical system,and it can be fine adjusted by hand wheel

    with read ou on the mechnical counter.

    Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears

    3. control panel:

    the control panel include alarm light, setting switch, counter, pupt strat, emergency switch and the touch screen.it is easy to understand these using function.



    4. hydraulic system:

    the shear use best quality hydraulic block, valve, pump and hydraulic cylinders to ensure the

    hgih performance and hgih reliability.


    5. electrical system:

    the electrical system adopt low voltage to control and ue the famous brand electrical compents to improve the reliability




    Major Elements:

    1. CE Conformity including Light guards
    2. Back gaueg control by the inverter and encode
    3. cutting depth and blade gap can Program on Control DTC-660
    4. control back gauge X and balde gap Z
    5. upper blade ahve two edges and bottom lade ahve four edges for change using
    6. the HRC of balde is 50-55
    7. motorized driven back gauge on ball screws
    8. side front arms with scale and stooper
    8. Side and rear safety guards and safety interlock switches


    Technical Data:


    NC hydraulic swing

    beam shear

    model

    Shear

    size

    (mm)

    Shear

    angle


    Cutting number

    (min-1)

    Back

    gauge

    (mm)

    Main

    motor

    (KW)

    Weight

    (kg)

    QC12K-4X20004X20001°30≥1820-6007.54000
    QC12K-4X25004X25001°30≥1820-6007.55200
    QC12K-6X25006X25001°30≥1820-6007.55200
    QC12K-6X32006X32001°30≥1420-6007.56260
    QC12K-6X40006X40001°30≥1020-600118700
    QC12K-6X60006X60001°30≥720-8001523000
    QC12K-8X25008X25001°30≥1420-600115300
    QC12K-8X32008X32001°30≥1020-600116300
    QC12K-8X40008X40001°30≥820-600119650
    QC12K-8X50008X50001°30≥720-7501521000
    QC12K-10X250010X2500≥1020-600159150
    QC12K-10X320010X32001°48≥820-600159150
    QC12K-10X400010X4000≥1020-80018.514500
    QC12K-12X250012X2500≥1020-600157380
    QC12K-12X320012X32001°30≥820-80018.512500
    QC12K-12X400012X4000≥720-80018.518000
    QC12K-16X250016X2500≥820-80018.512200
    QC12K-16X320016X3200≥720-80018.516300
    QC12K-16X400016X4000≥725-8003020000
    QC12K-20X250020x25002°30≥620-8003714000
    QC12K-20X320020x32002°30≥525-8003720000
    QC12K-20X400020x40002°30≥530-10003725000



    Enclosed Accessory:

    • Front arm support, 4pieces
    • Anchor bolt, 4 pieces
    • Nut, some pieces
    • Washer, some pieces
    • Oil gun, 1 piece
    • Foot pedal 1 piece
