    Pneumatic Sheet CNC V Grooving Machine CNC Slotting Machine 1.23m Feeding Deivce

    Ask Lasest Price
    Brand Name : JQ
    Model Number : BC(BC05K)-1230x3200
    Certification : CE
    Delivery Time : 30 days
    Supply Ability : 5 set every month
    • Product Details
    • Company Profile

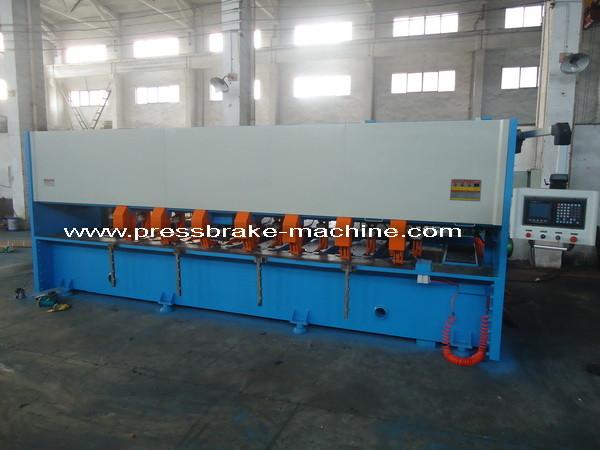

    Pneumatic Sheet CNC V Grooving Machine CNC Slotting Machine 1.23m Feeding Deivce


    Pneumatic Sheet CNC Slotting Machine V Grooving 1.23m Feeding Deivce


    4mm sheet V grooving machine, V groover,V cutting machine,CNC plate V grooving machine

    Specifications

    Max. width of steel sheet to be notched:1230mm
    Max. length of steel sheet to be notched3200mm
    Maximum thickness of steel sheet to be notched:4.0mm
    Min. thickness of steel sheet to be notched0.6mm
    Max. distance of the rear fedding1230mm
    Resolution of blade beam movement0.001mm
    Max. speed of cutting15-400m/min
    Max. distance of tool carrier movement (up & down)100mm
    Resolution of distance tool carrier movement0.001mm
    Max. distance of sliding frame movement3200mm
    Work-piece error within 3200mm±0.05mm
    Min. distance of V-trough edge15mm
    Positioning precision:±0.05mm
    The motor of blade bean( left & right moveing)4.4Kw
    The gas path pressure range0.6Mpa
    Dimension:4550*2300*16070(mm)
    Gross weight7500kg

    CNC sheet metal V grooving machine use Q235 material welded frame structure, vibration to eliminate the welding stress. good rigidity and stability

    high-speed cutting groove.

    Model: VBK-1230x3200

    Max. cutting thicness:4mm. Max. cutting width: 1230mm

    Electrical system with CE certificate(Sheinder, Germany)

    Motor with CE (SEW, Germany)

    Pneumatic system with CE ( AIRTAC, Germany)


    welcome to contact us:

    wxmachinery@163.com

    WhatsApp:+86 13961729519

    Skype:zouqicheng

    QQ:2308574039


    Feature

    • Whole machine body welded by steel plates with high strength and small deformation.
    • Full CNC automatic working
    • Automatic clamping and loosening
    • Blade moving meanwhile sheet works stay in its place,so save space
    • Quick changing of blades
    • Three sets blades working together to save time
    • Knock-down front support arms for long work pieces
    • Servo motor to ensure high precision
    • Less noise and high performance

    Workpiece Sample

    Pneumatic Sheet CNC V Grooving Machine CNC Slotting Machine 1.23m Feeding Deivce


    Packing And Shipping

    1. the machien adopt iron pallet with plastic cover to pack after the machine is

    running and testing for 48 hours.

    2. Before loading, stable package, professional and skilled loader reduce

    damage of product during transport


    Shipping Documents

    • Operation Manual(hydraulic diagram,electro diagram)
    • backing plate
    • footswitch
    • alloy blade
    • high speed steel
    • allen wrench
    • feeler block
    • oil gun
    • Packing list
    • Colors: According to Customer's requirements

    Pneumatic Sheet CNC V Grooving Machine CNC Slotting Machine 1.23m Feeding Deivce


    After Sales Service

    1. Our guarantee time is 5 years from B/L date. If any component is damaged

    during guarantee time, we can send the component to the customer

    by DHL, TNT freely.

    2. Our factory can send our engineer to the customer’s factory install,

    commission and training freely. The customer provide the double trip tickets,

    food and accommodation for our engineer.

    The customer also can send the engineer to our factory to learn the operation

    and maintains freely.

    3. Our factory provide the service for the customer forever, if the customer need

    operation help, can contact us by MSN, Skype, Email and Telephone at any time,

    we provide 24 hours on-line service.
