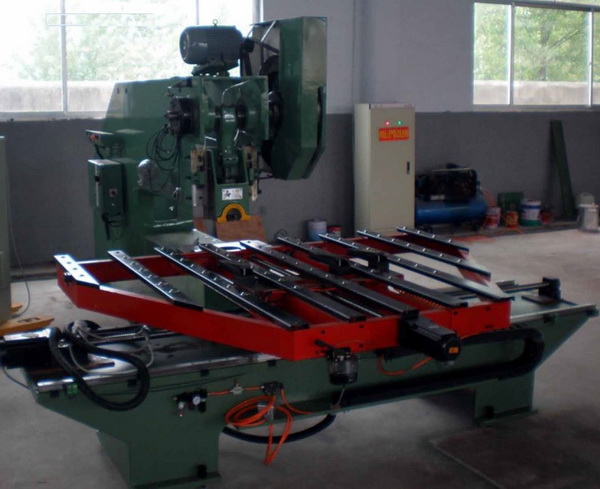

CNC Sheet Metal Punching Machine High Efficiency With Feeding Platform


Description:
Mainly used for sheet metal signle or multiple punch processing, typically used in a variety
of screens, solar, hardware blanking, ceilings, caps, recommended filtering equipment and
simple box and so on, be widely used in multiple industry.
1, This equipment continues to use the orignal punch as a stamping body and the existing
mold or with a manual six-station, together with the CNC feeder to form a set simple
numerical control equipment. It is economical and practical. The lowest investment cost,
maximum to acheive the CNC automation of sheet metal processing and improve product
quality and efficiency. At the same time, it can reduce production costs and reduce the
bumber of workers and labor intensity level.
2, CNC punch press dedicated system and simple to handle. It can be free upgraded for life.
3, Automatic conversion of Autocad drawings and with a mould library selection. The
procedures are repeated positioning, one-button operation and set the plate loading and
unloading points,
point process, automatic diagnostics, automatic optimzation of processing path, point red,
with red hybrid operation functions.
4, Optional six-station manual conversion turret tooling or a variety of multi-pin mold,
progressivedie to aacheive a variety of workpieces. The using is convenient.

Character:
Automatic stamping machine cnc hole punching machine
CNC punching machine is mechatronics automation equipment, it's widely used in the
chassis cabinets processing, air conditioners, refrigerators, instruments and meters,
electric control cabinet panels, battery plate, building decorative materials, auto parts,
lamps, kitchen equipment,and other sheet metal processing industries. Our machines
own mature technology,
high precision, easy operator, high production efficiency and other advantages. Main
pneumatic components,
electric components, hydraulic components and transmission components adopt
international well-known brand product.
1. Performance Features as follows:
1) Imported servo motor; imported precision dual linear guide, ensure high precision, long
service life; the import coupling, ensure durable, correction coefficient is high; import high
guide precision range and high precision steel ball screw, ensure the machining precision
and high speed.
2) Can be automatically converted to AutoCAD image processing code, no need manual
programming, can also use the G code direct processing; CAD drawing is provided with
mold base selection, and in the CAD file preview pattern, simple, functional.
3) Wide guide spacing design, improve the operation stability of machine tools, machining
accuracy of large plate. The whole welding, tempering, eliminate stress, to ensure the
long-term stability of the platform to strengthen the machine; special design, high strength
support, compact structure, stable running.
4) Equipped with centralized lubrication pump, the lubrication oil directly into each lubricating
point, reduce the friction of the movement of the deputy, improve service life.


Equipment specification:

Our service:

Machine Photo:

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
