Hydraulic CNC Turret Punching Machine 60 m/min With FANUC System
Description:
1. Advanced and reliable hydraulic drive system can select stroke
automatically corresponding
to different thickness of metal sheet and is convenient to realize
special process of louver,
blanking, etc. The punch is equipped with auto hydraulic overload
protection device, and guarantees
consistent pressing force for quality products.
2. Index stations are of worm wheel structure with max. punching
diameter of 88.9mm.
3. Imported pneumatic and hydraulic components guarantee
reliability of the machine.
4. Centralized lubrication device provides lubricant oil to the
desired points to reduce friction of pairing
elements for long machine life.
5. Tool station layout consists of A,B,C,D, which is convenient for
the customer and save the tool cost.
6. Common requirement is for site foundation preparation and
machine installation is simple.
7. Main pneumatic components,electric components,hydraulic
components and transmission
components adopt perfectly.
Performance:
The machine is of wide closure-type frame, which is solid,
receiving tempering treatment.
It has follwing features: Streamline body with side pin-positioning,
sleeve structure and thick
turret, accurate positioning, good guiding, high accuracy
adjustable worm and gear mechanism,
German H+L hydraulic station with high performance and low
energy-consumption, special
apanese FANUC Oip CNC Control, long ballscrew and guideway with
high speed and auto-lubrication,
universal pneumatic and electric parts, auto floating clamp and
stainless worktable with steel ball and
brush on it.
Feature:
Adopts the hydraulic system of the first class, whose stroke and
speed are changed digitally,
the max-punch hit can be reached 600hpm, and that at 25mm pace can
be up to 350hpm.
The large lead ballscrew and linear guideway of high precision are
equipped for driving.
The first-class CNC system with digital alternating servo motor
ensures the precision.
The imported pneumatic, hydraulic and electric components ensure
the perfect quality.
The inlay turret of high precision owns the long service life, and
the customer can select the
numbers of stations between 24 and 32.
After the advanced process and heat treatment, the service life of
the tooling has been extended
to a large extent.
Adopting worm-wheel and worm mechanism of high precision, the
auto-index, whose max. Diameter
is 88.9, can be extended.
The integral structure of beam and carriage enhances the rigidity
and precision; It also ensures
the smoothness of feeding at high speed and eliminates the dynamic
deflection of X, Y Axes.
CNC system:
7.5-inch LCD color monitor
Rear port: Connect the machine control panel USB interface, RS232C,
distributed and
integrated I / O
Axis, independent digital control of three-dimensional coordinate
movement.
the servo motor controlled precision ball screw drive and locking.
the three-dimensional coordinates can be manually fast, slow moving
and incremental
movement.
the absolute coordinates and relative coordinates programming.
screw backlash software compensation.
decimal data input.
using ISO standard NC code programming.
recall, modify, delete, insert other editing functions.
the dry run self-diagnostics, the program displays an error.
overcurrent, overvoltage, overheating, wrong phase protection.
breakpoints continue processing functions.
clamp pneumatic control
operating software: compatible with windows
Lubrication system: automatic lubrication system
the speed setting: stepless
Machine Paramter:
| TECHNICAL FEATURES |
| 1 | Type | CNC Hydraulic turret punching machine |
| 2 | Nominal pressure | 300KN |
| 4 | Number of die station | 32sets IT station:2 (Dia.12.7-31.75mm) A station:16 (Dia.3-12.7mm) B station:8(Dia.127.-31.75mm) C station:4 (Dia.31.75-50.8mm) D station:2(Dia.50.8-88.9mm) |
| 5 | Rotating die station | 2 sets |
| 6 | Max. work-piece dimension | 1250x2500 |
| 7 | Precision of punching | ±0.15 |
| 8 | Strokes of power driver | 800 (h.p.m) |
| 9 | Stroke of power driver | 32mm |
| 10 | Feeding speed | 60m/min |
| 11 | Speed of rotated turret | 30r/min |
| 12 | Station number | 32sets |
| 13 | Number of control axes | 4 ( X,Y,T,C) |
| 14 | Control system | FANUC from Japan |
| 15 | software | CNC KAD from Israel |
| 16 | Oil tank capacity | 250L |
| 17 | Pressure of compress air | 0.6Mpa |
| 18 | Power capacity | 30KVA |
| 19 | weight | 13000kg(N.W) |
| 20 | Overall dimension | 5853x2850x2325mm |
Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all machines. We dispatch
technician to customer's
factory for installation and pre-operation of machines.
3.Training Service
Our technician is available to your factory and offer training of
how to use our machines.
As well, you
may send your technician to our company to learn how to operate
machines.
4.Quality Guarantee
We guarantee the quality of machine for one year from the
shipment (e.g. processing speed and working performance is the same
as the data
of samples making). We sign the agreement with detailed technical
data.
We arrange final test before shipment. We run the machine for a few
days, and then use
customer's materials for test. After making sure machine is the
best performance, then
make shipments.

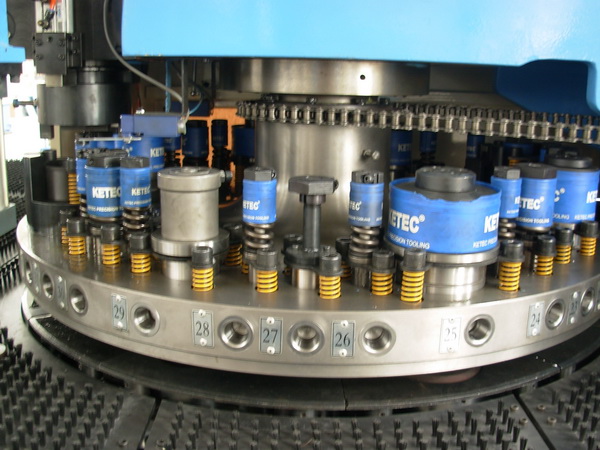

Machien photo:
