Plate CNC Punching Machine Tools Hydraulic Press Brake O Type


Function:
CNC hydraulic punch press with high accuracy and efficiency has integrated most advanced technologies in the world. A perfect combination of newest control technology and
conventional mechanism. It is an ideal equipment in numerically controlled metal fabrication
industry with good features such as high automation, high productivity, stable feature, safe
and reliable, ect.
This makes the machine unique and unmatched in China.

Performance:
The machine is of wide closure-type frame, which is solid, receiving tempering treatment.
It has follwing features: Streamline body with side pin-positioning, sleeve structure and thick
turret, accurate positioning, good guiding, high accuracy adjustable worm and gear mechanism,
German H+L hydraulic station with high performance and low energy-consumption, special
apanese FANUC Oip CNC Control, long ballscrew and guideway with high speed and auto-
lubrication,

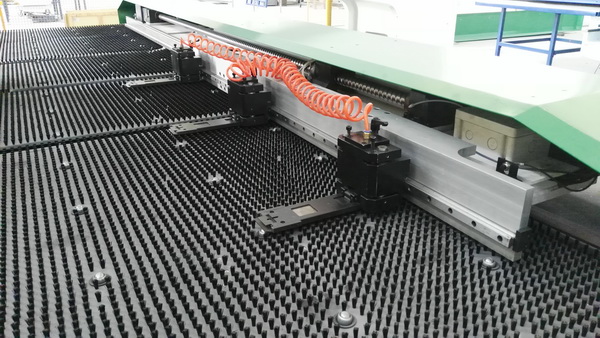

universal pneumatic and electric parts, auto floating clamp and stainless worktable with steel
ball and brush on it.

Decription:
Adopts the hydraulic system of the first class, whose stroke and speed are changed digitally,
the max-punch hit can be reached 600hpm, and that at 25mm pace can be up to 350hpm.
The large lead ballscrew and linear guideway of high precision are equipped for driving.
The first-class CNC system with digital alternating servo motor ensures the precision.
The imported pneumatic, hydraulic and electric components ensure the perfect quality.
The inlay turret of high precision owns the long service life, and the customer can select the
numbers of stations between 24 and 32.
After the advanced process and heat treatment, the service life of the tooling has been
extended to a large extent.
Adopting worm-wheel and worm mechanism of high precision, the auto-index, whose max.
Diameter is 88.9, can be extended.
The integral structure of beam and carriage enhances the rigidity and precision; It also
ensures the smoothness of feeding at high speed and eliminates the dynamic deflection of X,
Y Axes.
The integral structure of beam and carriage enhances the rigidity and precision, which is
especially suitable for VT-400, 500, 600 and 800.

performace:
New type CNC Turret Punch with high speed, more efficiency and lower noise.
Thick turret with sleeve structure, better guiding and higher precision, longer life-span of
tooling.
Keeping-touch index tool position, proprietary technology from NISSHiNBO.
Rapid loading and unloading tools. Pplied
Main parts (turret parts, components of index tool and reducer box etc. ) supp by NISSHINBO company.
High speed hydraulic RAM head and hydraulic system ot m+l max 1750cpm with no load.
Siemens 802D CNC system.
Wheel function, four-axis synchronized control function.
Automatic movement function of clamps (option).

Machine Paramter:

Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all machines. We dispatch technician to customer's
factory for installation and pre-operation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine for one year from the
shipment (e.g. processing speed and working performance is the same as the data
of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use
customer's materials for test. After making sure machine is the best performance, then
make shipments.

Machien photo:

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
