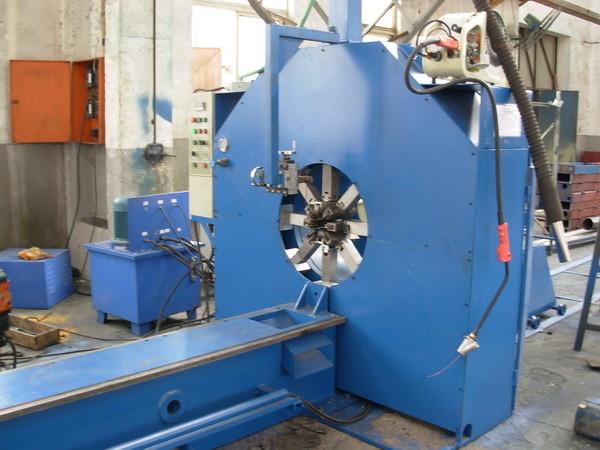

Circle Light Pole Making Machine Circumferential Seam Welding

Introduction:

This machine composed by main machine head, tractive body and feeding shelf.

Tractive body was moved by collet in small vehicle nipping the steel pole’s collet.

When the small vehicle moved,drived steel pole, from small collet to big collet,

regularity moved.the big side of the steel pole was hold by feeding vehicle, force

automatic sewing from head of machine to steerable wheel. At one time, the welding

machine starts welding, this machine adopt multiple wire submerged arc welding, solder

was reclaimed automatic. Welding line was symmetrical and slinky. It has strong filter,

forming one time, and be with high welding efficiency. The speed of welding achieve 2

to 3 meters per minutes, it is about 3 times of the gas welding. The cost of the welding

is lower than gas weldong, it is with speedy welding, high efficiency ,and lowest price in

china light poles industry now.

Description:

This machine is composed by main machine head, tractive body and feeding shelf. Using

submerged arc welding, first in the country with a high seep welding (2.5m/min), non-polluting, non-liminous, smooth surface, the direct weld penetration, simple operation, gas prices,

gas prices are lower than the welder, production is the first choice for the last

32 enterprise products.

Technical data:

Option:

1. Lincoln welding machine (USA BRAND)

Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc

Welding process

2. Fast motorized return back for dolly

Note:for the standard machine, the dolly return back can be motorized with working speed,

it is very slow for return back process. So, normally, the operator will open the dolly clutch

and push the dolly by manual.

In order to reduce the manpower, we have option: Fast motorized return back for dolly.

The operator only push button, the dolly will be back to the welding head.

3. Both Side additional hydraulic cylinder

It is suitable for small diameter big thickness light pole, or steel plate with high tensile

strength light pole.

With this additional option, the diameter from 60~340mm, thickness 2.8~6mm, all pole

can be suitable. And easy for operation.

Packaging:

Stable wooden package protects machine from strike and damage.

Wound plastic film keeps machine out of damp and corrosion.

Fumigation-free package helps the smooth customs clearance.

The big size machine will be fixed in container without package.

Machine photo:
