CE Approved Q35Y Hydraulic Iron Worker Machine To Section Bar
Punching
Introduction:
hydraulic ironworkers have been designed and built to the highest
quality standards
in the industry.
This profitable machine will serve any grueling fabrication shop
for decades to come.
This machine is typically in stock for quick deliveries.
1. hydraulic cutting iron bar cutting machine

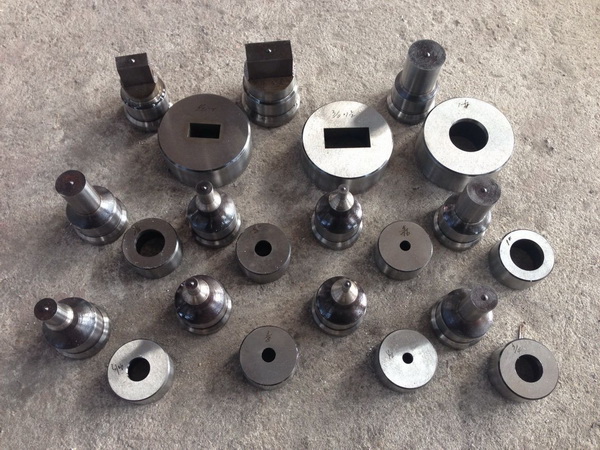

Full range of universal punches and dies are hydraulic ironworker
available.unique
style allows for large angle iron punching an large channe
punching.Large viewing window
on stripper swing away design for ease of operation.
large two piece gauging table with rulers and stop as standard
fittings.Quick change
coupling nut and sleeve for rapid replacement of change.
2. hydraulic cutting iron bar cutting machine
Round and square bar shear has multiple holes for a variety of
sizes. Adjustable hold down
device for round/square bar,channel/beam cutting. Large strong
guarding for max safety.
The angle shear has the ability to cut angle at 45°both top and
bottom leg.
This gives the operator the ability to make a picture frame corner
for perfect welds.
Diamond shaped blade for quality cuts that is minimal material lost
and deformity. Easily
adjustable holddown device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.Special antidistorted blade
for quality cutting.Lower
blade has four usable edges.There is screw allow for gap adjust no
shim needed.
3. hydraulic punching-shear machine Notching
Unique design allows for cutting of angle and flat bar. Electrical
interlock safety guard and
three gauging stops for
precise positioning.The notching section of this hydraulic
ironworker is perfect for notching
out metal plate,
angle iron and much more. The notching station also has an
oversized table with material stops.
This section of the machine can also be outfitted with the optional
vee notcher.
4. hydraulic ironworker machine Bending flat sheet and angle steel.
Also bend the plate below 500mm. All the components of Machine are
of the highest quality in
their safty, function, capability and maintenance
Features:
Flat bar cutting, profile cutting, punching hole and notching work
can be performed on the
machine within the rated specification, with extra equipment, the
machine is able to cut, punch
and bend in special shape.
The machine adopted hydraulic driving system and has a perfect
structure, with light weight
and low noise, stable performance and overload protecting device.
The machine is mainly used for cutting flat bar, profile, punching
hole and notching. It can be
widely used in Shipyard, Electric, Bridge, Auto-mobile, Hoisting &
Transportation, Metal
construction and other machinery factories etc.
Specification:
| No. | Function | Item | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 |
| 1 | Shearing plate | Angle of shearing | ° | 7° | 8° | 8° |
| Max. shearing thickness | mm | 16 | 20 | 25 |
| Flat bar | (W×T) mm | 250×16 | 330×20 | 330×25 |
| 400×8 | 480×10 | 600×16 |
| 2 | Shearing bar | Round steel | mm | 45 | 50 | 60 |
| Square bar | mm | 40×40 | 45×45 | 50×50 |
| 90°shearingof equal-angle bar | mm | 120×120×12 | 140×140×12 | 160×160×14 |
| 45°shearing of equal-angle bar | mm | 70×70×8 | 70×70×10 | 80×80×7 |
| 90°shearing of T-bar | mm | 120×120×12 | 140×70×12 | 160×80×14 |
| I beam steel | mm | 126×74×5 | 160×86×6 | 200×102×9 |
| channel steel | mm | 126×53×5.5 | 160×60×6.5 | 200×75×9 |
| 3 | Notch | thickness | mm | 10 | 10 | 12 |
| width | mm | 80 | 80 | 80 |
| depth | mm | 100 | 100 | 100 |
| 4 | punching hole | Max. punching thickness | mm | 16 | 20 | 25 |
| Max. diameter of punching | mm | 25 | 30 | 35 |
| Punching force | Ton | 60 | 90 | 120 |
| Depth of throat | mm | 300 | 355 | 400 |
| Max. length of cylinder stroke | mm | 80 | 80 | 80 |
| Stroke times | times/min | 6 | 8 | 6 |
| 5 | Material strength | N/mm2 | ≤450 | ≤450 | ≤450 |
| 6 | Motor power | KW | 4 | 5.5 | 7.5/11 |
| 7 | Overall dimensions | (L×W×H) | 1650×800×1780 | 1950×900×1930 | 2350×980×2100 |
| 8 | Net. weight | KG | 1900 | 2600 | 4400 |
After-Sale Service:
1. Two year warranty is provided.
2. Customers can send photos or samples for our confirmation once
the parts are
damaged within the two year warranty. If the parts are not damaged
by misoperation,
we will reply to customers within 48 hours and provide free parts
for replacement. Besides,
for the parts out of commission and beyond the warranty, we only
charge for the basic
costs of parts.
3. We regularly follow up the service condition of products, and
timely analyze and copy
with the feedbacks. As for the disputes, we will figure out
effective actions to reach mutual
satisfaction.
