Automatic 6mm CNC V Grooving Machine GBC05K-1250/4000 Stainless steel V Groover

we are producing sheet V grooving machine, V groover,V cutting machine,sheet metal V grooving machine
Performace of CNC sheet v grooving machine:
the new type sheet V grooving machine adopt double cutting blade to cut the metal sheet, the blade
carrier shuttled cut the sheet. it get high productivity and lowlabour cost.
This equipment is fully CNC V Groover Machine for metal sheet. It adopts
advanced CNC system and innovative design with the advantages
of high processing precision, simple operation, no noise, no vibration and so on.
It is widely used in the sheet metal V-groove, U-groove
and other irregular groove processing (including stainless steel, aluminum,
aluminum plate, copper, iron, plastic, wood, acrylic panels and
other special plates.). Particularly, it is applicable to the V-groove processing
of sheet metal before bending .

CNC sheet V groove machine Character:
the CNC sheet V grooving machine uses precise ball screws as its drive unit and get high
machinning accuracy, so it is particularly significant for high calss products. this structure is
universally used on relevant equipment in foreign countries.
the V cutting machine is subject to three axis numerical control. its axis x(right &left moving),
axis Y(feeding unit) and Z axis(vertical moving) are all subject to servo control. it can realize
full automatic maching after parameters are input, comprehensively improving the accuracy of
grooving.
the dirve screw of the tool rest has a multiple thread structure for precise machine. it is
characterized ny manny force bearing points, even and accuracy of grooving.
drven by hydraulic system, the pressing system ,generates large pressures, a reliable fastening
force and small noise and energy consumption.
the rear feeding unit is driven by a double screw strccucutree and its surface has positiong
accuracy

6000mm long V grooving machine Technical Data:

servo drive V grooving machine Describe:
This V cutter machine composed of bed, beam, tool rest, cnc system, pneumatic
material hold-down unit, compressed air blowing and cooling system. It is a gantry
type grooving machine.
The bed and beam is box-type structure. Steel welded structure, tempering aging
to eliminate stress. Good rigidity and accuracy.
Tool rest action of moving forward and backward(Y1 axis), up and down(Z axis),
and forward and backward on hold-down(Y2 axis) are all controlled by cnc system.
AC Servo drive, ball screw transmission, with high accuracy and location accuracy.
Left and right moving of beam(X axis) use ac frequency conversion motor drive,
transmission motion with gear and rack, with high speed, strong loading capacity.
The pneumatic hold-down system ensure good machining precision and repeat
accuracy, which can automatically adapt different sheet thickness

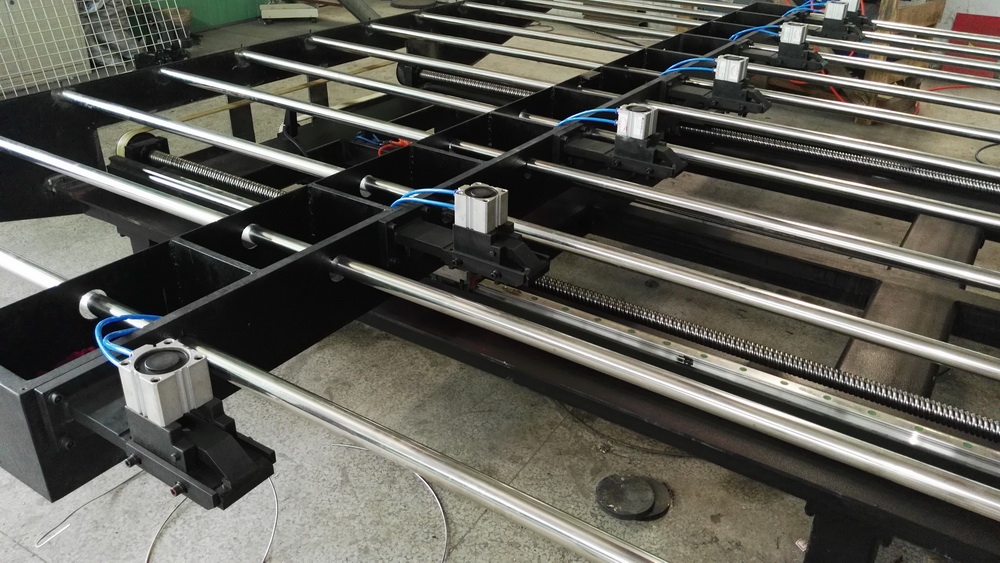

Rear Feeding Device of CNC V groover:

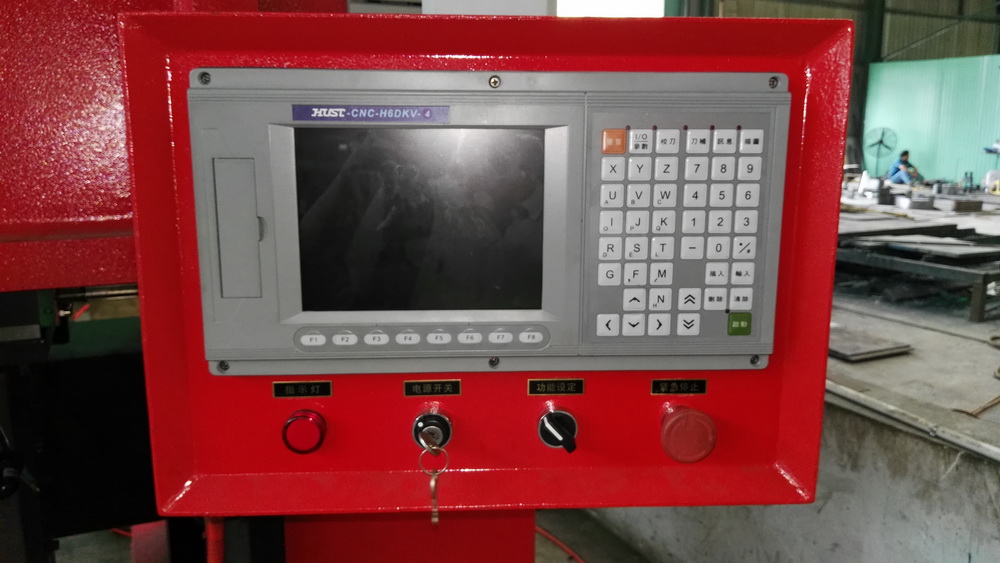

CNC Control System H6DK of CNC sheet V cutting machine:


Double cutting balde of CNC plate V groover machine:


Worktable And Pneumatic Hold Down on 10 feet sheet grooving machine:

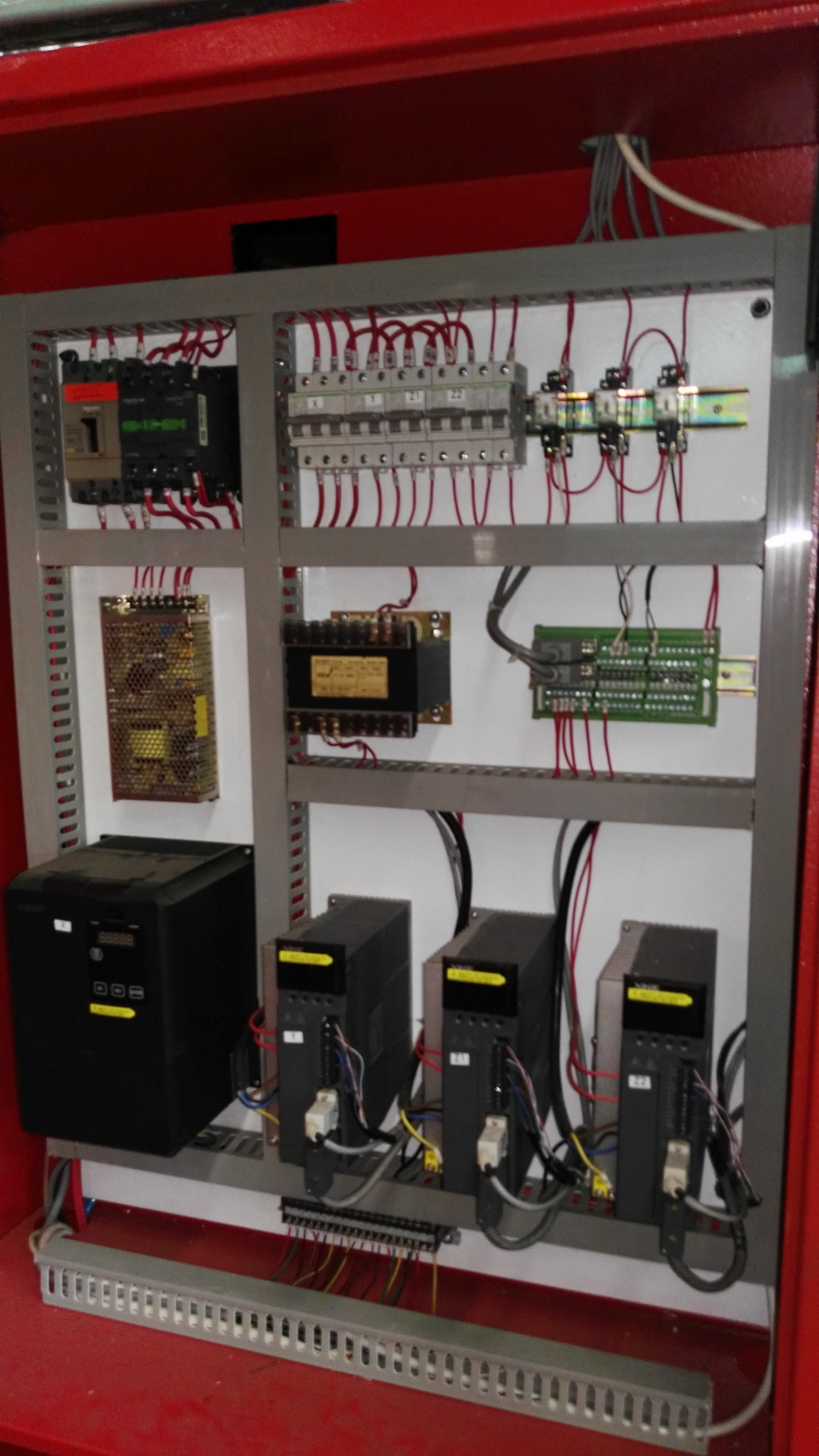

Electrical System of CNC plate groover:

Enclosed Accessory:

• backup plate 12 pieces
• allen wrench 1 set
• screw some pieces
• high speed steel 3 sets
• alloy blade holder 5sets
• alloy inserter 12 pieces
• feeler blcok 1 set
• oil gun 1 piece
• Foot pedal 1 piec
