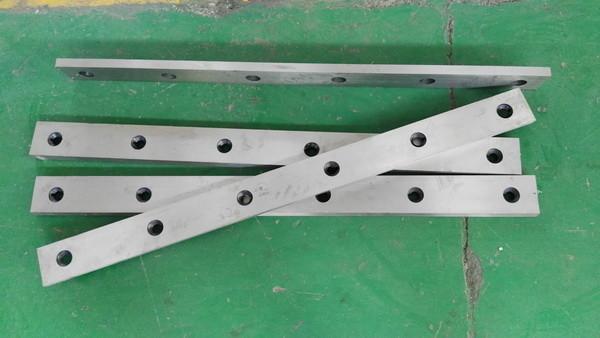

High Speed Steel Cutting Blade / Metal Rotary Shear Blades For Cut
Sheet Metal
Description:
Like product: Blade Linear guideway, shear blade, circular knives
and spacers,
cold and hot cutting linear blade, Square profiled cutting blade,
Wear plates,
Sheet metal coils cutting, etc
Passed the ISO9001:2008
Materials:5CrW2Si,6CrW2Si,Cr12MoV,9SiCr,GCr15,H13,H13K,HMB and HMK
Features: High intensity, high hardness, high toughness, and high
wear resistance.
Incision: Smooth free of burr
Blade Incision: Smooth without burr and long working life
working ability:
Length:50mm~5500mm
Width:20mm~1000mm
Thick:5mm~500mm
OD:50mm~1500mm
Applicable Industries: Widely used in industries of steel, rubber,
papermaking, etc
Technology: Each technical index reaches the international standard
Specifications:
Stainless Steel Shearing Blade
Material: 9CrSi, D2, HSS
HRC:55-64
Use: cutting paper
Bearing blade is used to cut paper and rubber. It can be made of
9CrSi, D2,HSS ,etc.
The hardness can be reached 55-64 HRC .
Tolerance of Outside Diameter: -0.05-+0.05mm
Tolerance of Inside Diameter:0-0.05mm
Tolerance of Thickness: -0.05mm-+0.05mm
Standard Tolerances:
closer tolerances are availablade upon request | semi-finished | finished |
| Dimensional | +/-0.003'' ,+/-0.075m | +/-0.001'', +/-0.025mm |
| Matched thickness or width | 0.0015'', 0.04mm | 0.0005'', +/-0.013mm |
| match at butt ends | 0.001'', 0.025mm | 0.00025'', +/-0.006mm |
| twist | 0.002T.I.R,0.05mm | 0.001TIR, +/-0.025mm |
| flatness | 0.0015/ft, 0.04mm/305 | 0.0005/ft 0.013/305 |
| straightness | 0.0015/ft, 0.04mm | 0.0005/ft 0.13/305 |
| squarenss | 0.0015'', 0.04mm | 0.0003'' 0.0075mm |
| parallelisim | 0.0015TIR, 0.04mm | 0.0002TIR 0.005mm |
| hole location | 0.001'', 0.025mm | 0.0005'' 0.013mm |
| micro finish | 32, 0.8 | 8/16, 0.2/0.4 mm |
Character:
| Name | shear blade |
| Material | H13K,9CrSi,6CrW2Si,SKS41,T10,W110,W112.LD,ect. |
| Nos.of cavity | Customized |
| Hardness | HRC52-60 |
| OEM service | available |
| Design software | AutoCAD,UG,Pro/E,SolidWorks |
| Packing | Wooden case/ect. |
| Delivery time | 15-20work days |
Features:
1. Material: high speed steel, alloy tool steel,tungsten
carbide,SKH51,SKD11,
SKS7,SK2,H13,P20,etc
2. Hardness:HRC55-65
3. High precision surface, no burr or press
4. More than 9 years professional manufacture experience
5. Strict quality management system
6. Custom orders accepted.
7. OEM and ODM
8. Lead time 10~15days.
Details of shear machine blades:
Hydraulic Guillotine shearing blades
fit for any press brake
practical and easy to set and replace
all specifications are acceptable
competitive price
fast delivery and safety package
Specification:
| Material | 42CrMo=SCM440=42CrMo4=4140 |
| General Hardness | HRC47+/-2 |
| Surface Tolerance | 0.02mm |
| Sectioned | AVAILABLE |
| Certification | ISO9001:2008 |
| Supplying Brands | amada, tokyo, trumpf, wila, LVD, YSD, beyeler, etc. |
| OEM & ODM Service | AVAILABLE |
| CUSTOMIZE & DESIGN Service | AVAILABLE |
Our Serice:
24 hours online service
Offer solutions for your application needs
Guaranteed quality and competitive price
Excellent affter-sales service
We can provide samples if you need
Professional packaging and on-time delivery
Packaging & Delivery:
Our products will be packed in wooden boxes, high quality paper
cases or foam cases.
To ensure the safety of the blades, careful packaging is necessry.
The cargo can be
sent by ship, air or international express.
We stock many common blades, and we can make a blade to your
specifications. Whether you are
in structural steel, fabricating, ornamental iron, rail or metal
buildings, we can provide replacement
blades for your ironworker.
Flat bar shear blades
Angle shear blades
Coper notcher blades
Angle notcher blades
Bar cutter blades
One to four cutting edges per blade
Scissor style cutting blades
Guillotine style blades
Threaded and countersunk mounts
Custom sizes and styles available- send a drawing or a sample
