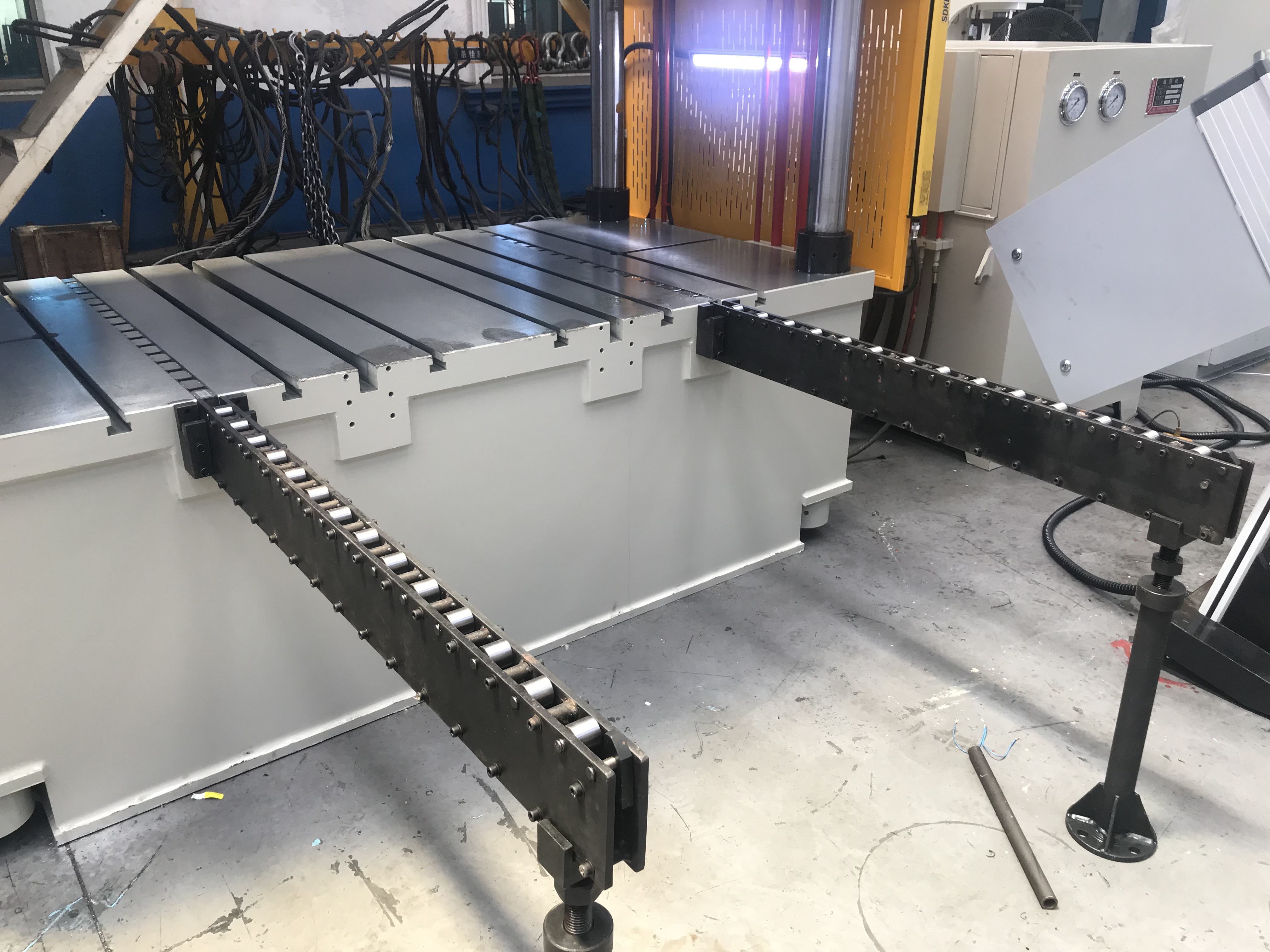

Servo Drive YD32-180T CNC Hydraulic Press Unit 2m Long Worktable
With T Type Slots
China metal products trimming machine, sheet forming machine, press
assembly machine,
buy power press machine,hydraulic press, press machine,bending
machine
Definition of servo hydraulic press:
Servo hydraulic press, servo hydraulic press and numerical control
hydraulic press are energy-saving
and high-efficiencyhydraulic presses, which adopt servo motor to drive the main drive
oil pump, reduce
the control valve circuit and control the slider of hydraulic press. It is mainly composed of frame, machine head,
workbench, servo motor, push rod, pressure plate and control switch. On the upper part of the frame,
a cantilever mounting machine head is fixed, and a servo motor is vertically mounted on the machine head.
The lower end of the servo motor is coaxially connected with a push
rod,
and the lower end of the push rod is provided with a pressing
plate. Adopt bow structure, similar to
traditional mechanical punch, with simple and compact structure, small floor space and convenient
operation.
A workbench is fixedly arranged at the lower part of the frame, the lower end of the servo motor is coaxially
connected with a push rod through a ball screw, and control
switches are symmetrically arranged at the outer
side of the workbench corresponding to the pressing plate, and the
control switches are interlocking two-handed
start buttons.
Working principle of servo hydraulic press:
The servo hydraulic press drives the oil cylinder to press up and
down through the servo hydraulic pump set.
The man-machine dialogue of the established numerical control
system can set the press-fitting parameters
of products in the configuration touch screen according to
customers' press-fitting products, and can visually
check the press-fitting data of products. At the same time, it can
perform on-line press-fitting detection of
press-fitting products. The equipment has multi-stage press-fitting
speed control of rapid pressing, press-fitting,
pressure-keeping and return, which can effectively ensure the
pressure accuracy and displacement accuracy
of products during press-fitting.
Technical characteristics of servo hydraulic press
1. Servo motor has high sensitivity and fast response:
2. High precision displacement sensor is adopted for detection, and
the repeated positioning accuracy is high,
up to ±0.02mm
3. The machine operation is more humanized, with friendly
man-machine interface. The pressure, position
and speed can be set and adjusted arbitrarily on the computer
screen.
4. Compared with the traditional model, the production cycle can be
shortened by about 20% in the fully
automatic production mode.
5. Servo-hydraulic system control can meet the changing
requirements of different processes for speed
and pressure, and the movement is more stable.
6. The main hydraulic components are brand-name products, which
ensures the stability of hydraulic
system performance.
7. PLC control, touch screen parameter setting and monitoring to
realize digital control.
Thachnical parameter of CNC hydraulic press:
1.rated pressure: 200T
2.Max. pressure of liquid:25Mpa
3.return pressure:300KN
4.Max.stroke of moving beam:500mm
5.Max. opening height:900mm
6.ejection pressure:400KN
7.stroke of the ejection cylinder:200mm
8.sizes of worktable:800X1000mm
9.idel speed:350mm/s
10 pressing speed: 8-6mm/s
11.return speed:200mm/s
12.power of motor:18.5KW
Our Advantage:
MOQ: We can supply you the quantity you want.
OEM: We can produce the goods as per the customer requirement.
Service: We are much more concern for the on time delviery & quality
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039
four colum press froming machine200T is installed at the customer
workshop
