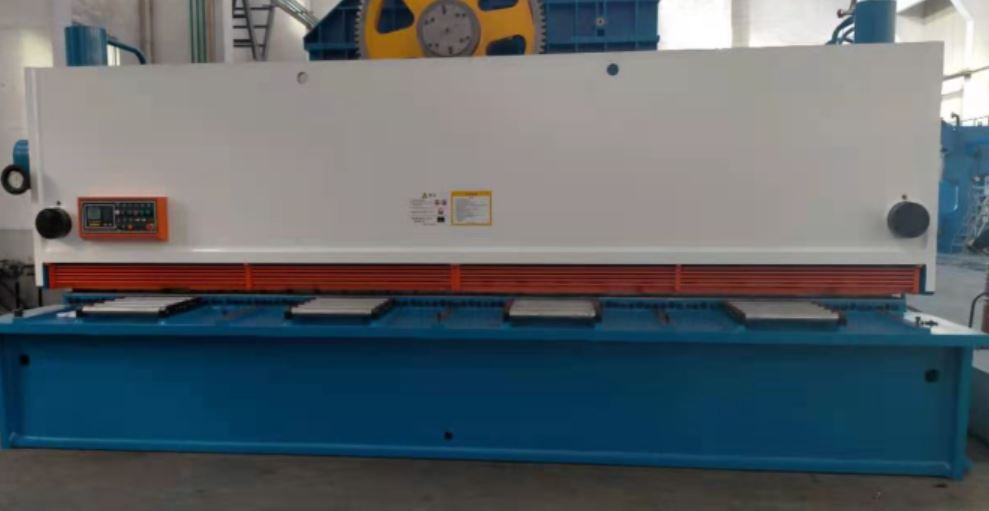

6m Length Hydraulic Metal Sheet CNC Shearing Machine cut 8mm
Thickness Stainless Steel
sell hydraulic shearing mahine/guillotine shear/press brake
machine/cutting machine
QC11K Series Hydraulic CNC Guillotine Shearing Machine
CNC sheet hydraulic shearing machine Features:
1.The shear machine body adopts integrally weld structure, and uses
the vibration aging technology
to eliminate stress,which is typical of excellent rigidity and
stability.
2.Advanced hydraulic integrated valve bloke is employed, which
decreases the installation of
pipe lines in a compact structure, enhancing the reliability and
maintainability of the machine.
3.The oil cylinders in series ensure that the shearing angle do not
change during the shearing
processing.
4.The accumulator returns accurately and rapidly,and the blade
clearance can be adjusted in
an accurate, rapid and convenient way by the hand wheel.
5.The sheering angle is adjustable,which decreases the distortion
of sheet.And the electric
back-gauge and position display machine make it convenient and
accurate.
6.The rolling material support ball decreases scratch of sheet and
reduces frictional resistance.
World-Class Bearings
Individually designed adventure of Through Grinding machine also
include the use of precisio
n spherical bearing that has self-adjustment,self-lubricating and
maintenance-free characteristics,
and zero clearance installation in high chromium steel shaft.The
design ensures Through
Grinding machine cut countless various properties of plate, from
precision sheet to heavy
plate in 30 years.
Automatic swing-up back-gauge
Through Grinding also features an automatic swing-up back stop
Quality Shearing Knives
Only the highest quality shear knives are used to provide maximum
longevity and to minimize resharpening.Depending on the shear
capacity,either high carbon, high chrome,or high
carbon/shock resisting knives are used for shearing a wide range of
metals such as aluminum,
A36 plate, stainless and titanium etc.
shear cutter machine Details:
1. welded frame and blade carrier
Strong steel welded frame and blade carrier are both
temperaturetreated tp release the stree.
it improves the cutting precision of the shear.

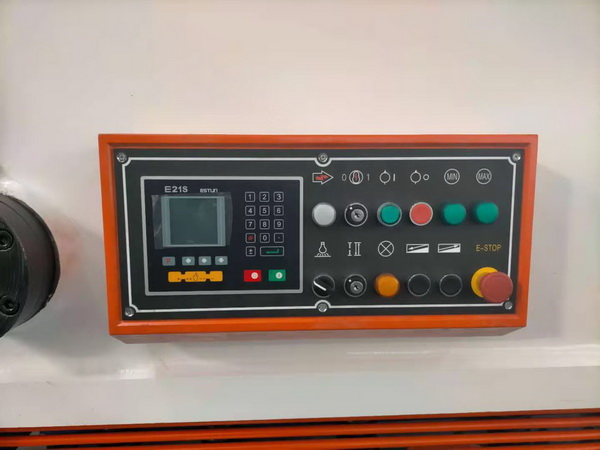

2. control system DDR:
the control panel include alarm light, setting switch, counter,
pupt strat, emergency switch and the touch screen.
it is easy to understand these using function.
3. blade gap adjsuting unit :
the blade gap can be adjsuted by the hand wheel, it only rotate the
wheel to reach the thickness sizes, the blade gap
will adjsut as per different sheet thickness.
5. electrical system:
the electrical system adopt low voltage to control and ue the
famous brand electrical compents to improve the reliability
cnc guillotine shearing machine character :
The shearing stroke can be adjusted at will, which raise the
working efficiency and realize
the function of partition cutting.
Shearing angle can be adjusted within a certain range, which can
reduce the shearing deformation
and can cut super thick sheet metal.
The back gauge is equipped with manual lifting function, which is
convenient to shear long
sheet metal.
Plug-in hydraulic system can slow down the rise of oil temperature,
strengthen the reliability
and safety of machine operation. Inside the wallboard manual pump
is installed, which makes
operating convenient and lubricating reliable.
Standard machine is equipped with MD-100 dedicated system and PLC
controller, which makes
the adjustment of shearing counting, back gauge, shearing angle and
blade gap simple and
convenient.
DAC310 and DAC360 control system is optional, which can meet
demands for higher precision
of cutting and control.
SERVICE
Our machine is simple, generally, you can understand how to operate
easily, and welcome to
our factory to learn how to operate our machine, we will give good
training. If necessary, our
engineer can go to your factory, and adjust machine, give good
training
Packaging & Delivery
Packaging Detail: Standard exporting package or according to
customers'require
inner machine, it is packaged in moistureproof film.
pallet or wood box.
ground fixed bolt to confirm steady and avoid destory.
tightly exporting standard belf to fasten machine in container.
Major Elements:
1. CE Conformity including Light guards
2. Back gaueg control by the inverter and encode
3. cutting depth and blade gap can Program on Control DTC-660
4. control back gauge X and balde gap Z
5. upper blade ahve two edges and bottom lade ahve four edges for
change using
6. the HRC of balde is 50-55
7. motorized driven back gauge on ball screws
8. side front arms with scale and stooper
8. Side and rear safety guards and safety interlock switches
hydraulic plate shear machineTechnical Data:
shear size: 8x6000mm
shear angle: 0.5-2°
hold down number: 26 pcs
strokes: 7 times/minute
back gauge range: 20-1000mm
main motor: 22KW
volume of oil tank: 790L
weight:24850kg
overall dimensions: 6910X2351X2730MM
Enclosed Accessory:
- Front arm support, 4pieces
- Anchor bolt, 4 pieces
- Nut, some pieces
- Washer, some pieces
- Oil gun, 1 piece
- Foot pedal 1 piece
REXROTH brand hydraulic system for hydraulic guillotine shear
QC11K-8X6000
