    CNC 60T Full Automatic Ceramic Powder Compacting Press metal powder Forming

    Ask Lasest Price
    Brand Name : WXJQ
    Model Number : AHP-60T
    Certification : ISO9001
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    CNC 60T Full Automatic Ceramic Powder Compacting Press metal powder Forming

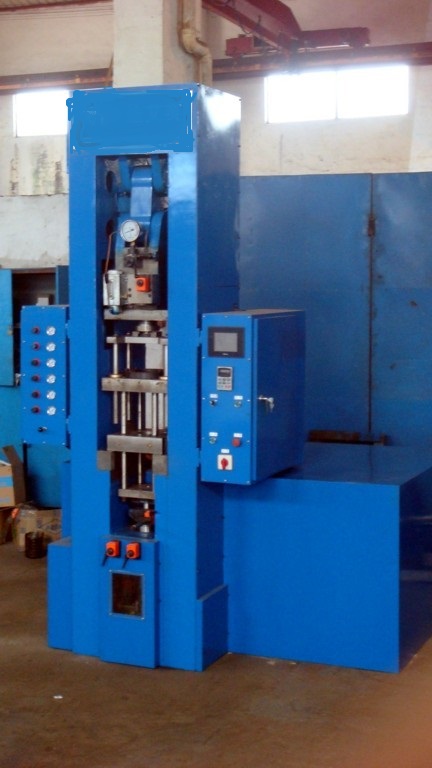

    CNC 60T Full Automatic Ceramic Powder Compacting Press


    buy podwer press machine,mechanical powder press, podwer metallurgy press machine


    PA series automatic dry powder press -- Scope of application:

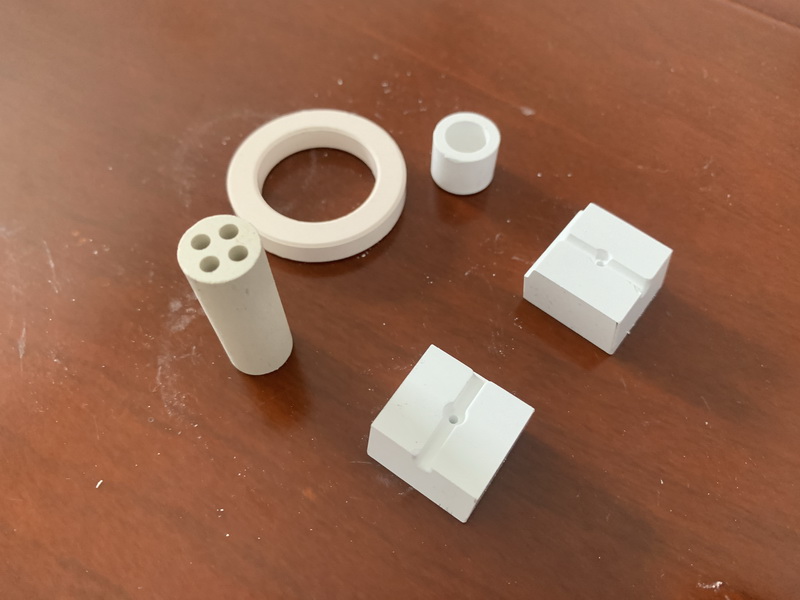

    It is suitable for powder metallurgy, cemented carbide, ceramic materials, magnetic materials, and the corresponding industries

    that need powder molding, especially the automatic dry pressing of powder products with complex shapes



    50T Automatic Dry Powder Compacting Press

    ★ The process of filling, forming, pulling out and removing the die is automatic and continuous

    ★ Mechanical die forced floating, pull down demoulding, non-simultaneous three times pressure to achieve

    two-way pressing

    ★ Pressing stroke, top pressure stroke stepless adjustment with scale indication

    ★ The demoulding position is constant, the demoulding stroke does not need to be adjusted and has the function of

    over (under) quantity packing

    ★ With pneumatic protection demoulding function and stepless power adjustable

    ★ Can be operated by clicking, adjusting, single cycle, continuous operation

    ★ It can stop holding pressure in the pressing position, and the holding time is set arbitrarily

    ★ Variable frequency speed regulation model with phase, over current, over torque protection and other functions

    ★ The motion pair in the machine is centralized timing, quantitative lubrication and under-pressure and oil filter blockage

    alarm

    ★ The stop and operation of the machine is controlled by the pneumatic clutch, and the double air control valve controls

    the clutch to operate and stop the press safely

    ★ Equipped with multi-layer mold frame, it can meet the molding requirements of multi-step complex shape products

    ★ All operating procedures are displayed, controlled, set and adjusted by encoder -PLC- touch screen human-machine interface.


    metallurgy podwer compacting press parameter table:

    ModelUNITP-C15TP-C25TP-C60TP-C120T
    Max. compacting pressurekN1502506001200
    Max. release forcekN150200400600
    Max.supporting force of middle diekN100100300600
    Maximum return force of diekN5.56.520.520.5
    upper punch strokemm125150180200
    adjust stroke of upper pucnhmm60508080
    Max filling heightmm100100120130
    Max pressing strokemm3065120120
    Max release strokemm75100120130
    Compressing strokemm60707095
    Over (under) charge strokemm5555
    Die position adjustment amountmm10502030
    hopper travelmm125130200200
    Max. forming diametermm7590100110
    Forming speedr/min12-2512-258-208-20
    powerkw3.75.51522
    speed regulation deviceInverterInverterInverterInverterInverter
    air driving force for the clutchMpa0.550.550.550.55
    Preload adjustable travelmm65806580
    voltage380V/50HZ
    weightkg21003000800014000
    heightmm2800300035804750
    Widthmm1300138221002780
    Lengthmm1300160018001850

    Work Environment for automatic compactting press :
    Environment temperature 5℃-35℃
    Humidity: relative humidity ≤95%
    Power supply voltage: 380V ± 10%
    Compressed air pressure: 0.55-0.65MPa
    Hoist ≥3t (only used for lift tool adaptor, not for install press)


    Packing & shipping:

    PVC film covered hydraulic press

    Whole machine fixed in the container with steel rope,very safe

    Wooden case or pallet or iron box

    If have stock,can provide right now

    If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

    Can give destination port best price or cost to the customer factory


    More information please contact us:

    wxmachinery@163.com

    WhatsApp:+86 13961729519

    Skype: zouqicheng

    QQ: 2308574039


    the structure of dry powder press machine:
